Hot-Fire Tests Show 3-D Printed Rocket Parts Rival Traditionally Manufactured Parts

Published by Klaus Schmidt on Sat Jul 27, 2013 5:20 am via: NASA
Share
More share options
Tools
Tags

What can survive blazing temperatures of almost 6,000 degrees Fahrenheit without melting? What did not break apart at extreme pressures? What is made by a new process that forms a complex part in just one piece? What takes less than three weeks to go from manufacturing to testing? What can reduce the costs of expensive rocket parts by 60 percent or more?

Answer: 3-D printed parts

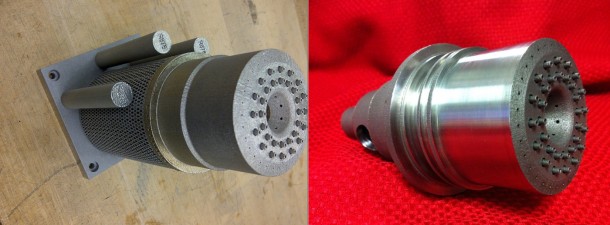

Left: 3-D printed rocket injector as it looked immediately after it was removed from the selected laser melting printer. Right: Injector after inspection and polishing. Image Credit: NASA/MSFC

Left: 3-D printed rocket injector as it looked immediately after it was removed from the selected laser melting printer. Right: Injector after inspection and polishing. Image Credit: NASA/MSFC

Engineers know that 3-D printed rocket parts have the potential to save NASA and industry money and to open up new affordable design possibilities for rockets and spacecraft. But until recently, no one had tested rocket parts critical to engine combustion in a hot-fire environment.

NASA engineers at the Marshall Space Flight Center in Huntsville, Ala., not only put rocket engine parts to the test but also were able to compare their performance to parts made the old-fashioned way with welds and multiple parts during planned subscale acoustic tests for the Space Launch System (SLS) heavy-lift rocket. In little more than a month, Marshall engineers built two subscale injectors with a specialized 3-D printing machine and completed 11 mainstage hot-fire tests, accumulating 46 seconds of total firing time at temperatures nearing 6,000 degrees Fahrenheit while burning liquid oxygen and gaseous hydrogen.

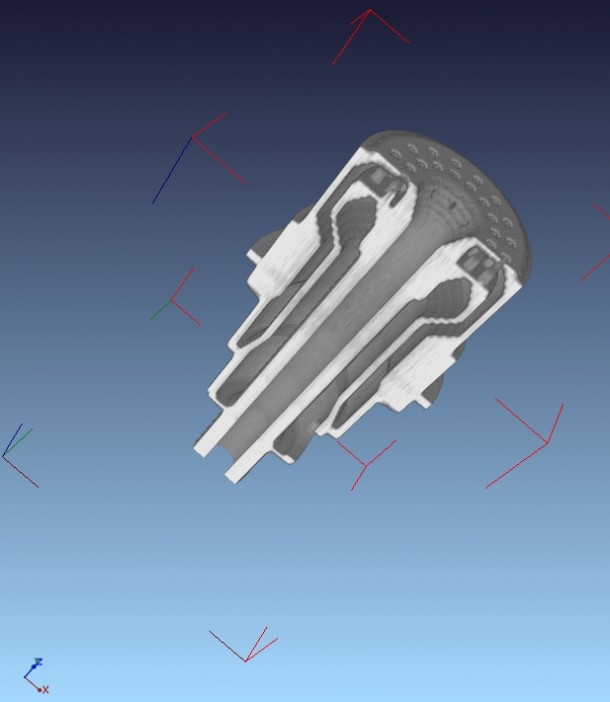

Before testing the 3-D printed rocket injector, materials engineers at the Marshall Center performed a computer tomography scan to ensure the part was fabricated according to the design. Image Credit: NASA/MSFC

Before testing the 3-D printed rocket injector, materials engineers at the Marshall Center performed a computer tomography scan to ensure the part was fabricated according to the design. Image Credit: NASA/MSFC

“We saw no difference in performance of the 3-D printed injectors compared to the traditionally manufactured injectors,” said Sandra Elam Greene, the propulsion engineer who oversaw the tests and inspected the components afterward. “Two separate 3-D printed injectors operated beautifully during all hot-fire tests.”

Post-test inspections showed the injectors remained in such excellent condition and performed so well the team will continue to put them directly in the line of fire. In addition to the SLS acoustic tests, Greene and her team tested a more complex assembly of a 3-D printed injector and thrust chamber liner made by Directed Manufacturing, Inc., of Austin, Texas. Marshall engineers transferred a second 3-D printed injector to NASA’s Stennis Space Center in Mississippi, where it will continue to accumulate hot-fire time to test its durability.

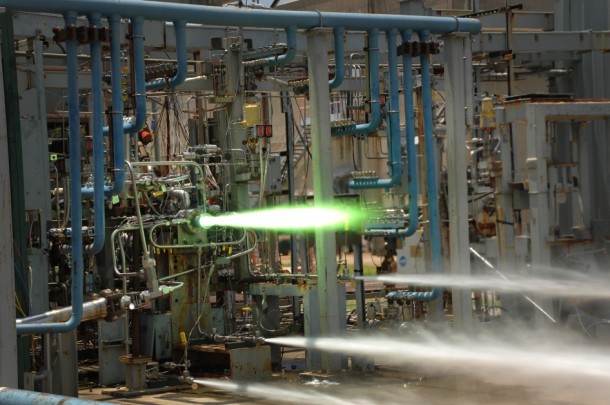

Marshall engineers installed the injector in a subscale RS-25 engine model. During hot-fire testing, the engine and part were exposed to temperatures of nearly 6,000 degrees Fahrenheit. Image Credit: NASA/MSFC

Marshall engineers installed the injector in a subscale RS-25 engine model. During hot-fire testing, the engine and part were exposed to temperatures of nearly 6,000 degrees Fahrenheit. Image Credit: NASA/MSFC

“Rocket engines are complex, with hundreds of individual components that many suppliers typically build and assemble, so testing an engine component built with a new process helps verify that it might be an affordable way to make future rockets,” said Chris Singer, director of the Marshall Center’s Engineering Directorate. “The additive manufacturing process has the potential to reduce the time and cost associated with making complex parts by an order of magnitude.”

Traditional subscale rocket injectors for early SLS acoustic tests took six months to fabricate, had four parts, five welds and detailed machining and cost more than $10,000 each. Marshall materials engineers built the same injector in one piece by sintering Inconel steel powder with a state-of-the-art 3-D printer. After minimal machining and inspection with computer scanning, it took just three weeks for the part to reach the test stand and cost less than $5,000 to manufacture.

“It took about 40 hours from start to finish to make each injector using a 3-D printing process called selective laser melting, and another couple of weeks to polish and inspect the parts,” explained Ken Cooper, a Marshall materials engineer whose team made the part. “This allowed the propulsion engineers to take advantage of an existing SLS test series to examine how 3-D printed parts performed compared to traditional parts with a similar design.”

Since additive manufacturing machines have has become more affordable, varied, and sophisticated, this materials process now offers many possibilities for making every phase of NASA missions more affordable. The SLS injector tests are just one example of NASA’s efforts to fabricate and test 3-D printed parts in relevant environments similar to those experienced during NASA missions. The SLS injector test series complements a series of liquid oxygen and gaseous hydrogen rocket assembly firings at NASA’s Glenn Research Center in Cleveland, which hot-fire tested an additively manufactured, select laser melted injector developed through collaboration of industry and government agencies. A J-2X engine exhaust port cover made at the Marshall Center became the first 3-D printed part tested during a full-scale engine hot-fire test at NASA’s Stennis Center. Marshall materials engineers are currently making a baffle critical for pogo vibration mitigation; it will be tested at Marshall and Stennis and is a potential candidate for the first SLS mission in 2017. Marshall engineers are finishing up ground tests with Made in Space, a Moffett Field, California company working with NASA to develop and test a 3-D printer that will build tools on the International Space Station next year. NASA’s Johnson Space Center in Houston is even exploring printing food in space.

“At NASA, we recognize ground-based and in-space additive manufacturing offer the potential for new mission opportunities, whether printing rocket parts, tools or entire spacecraft,” Singer said. “Additive manufacturing will improve affordability from design and development to flight and operations, enabling every aspect of sustainable long-term human space exploration.”
