The Moon and Sun: Two NASA Missions Join Images

Published by Klaus Schmidt on Wed Jun 12, 2013 7:37 pm via: NASA
Share
More share options
Tools
Tags

Two or three times a year, NASA’s Solar Dynamics Observatory observes the moon traveling across the sun, blocking its view. While this obscures solar observations for a short while, it offers the chance for an interesting view of the shadow of the moon. The moon’s crisp horizon can be seen up against the sun, because the moon does not have an atmosphere. (At other times of the year, when Earth blocks SDO’s view, the Earth’s horizon looks fuzzy due to its atmosphere.)

If one looks closely at such a crisp border, the features of the moon’s topography are visible, as is the case in this image from Oct. 7, 2010. This recently inspired two NASA visualizers to overlay a 3-dimensional model of the moon based on data from NASA’s Lunar Reconnaissance Orbiter, or LRO, into the shadow of the SDO image. Such a task is fairly tricky, as the visualizers — Scott Wiessinger who typically works with the SDO imagery and Ernie Wright who works with the LRO imagery — had to precisely match up data from the correct time and viewpoint for the two separate instruments. The end result is an awe-inspiring image of the sun and the moon.

This is an image of a lunar eclipse as viewed by NASA's Solar Dynamics Observatory, or SDO, with a model of the moon from NASA's Lunar Reconnaissance Orbiter replacing the lunar shadow. Roll your mouse over the image to see it the original SDO image with the lunar shadow. Credit: NASA/SDO/LRO/GSFC

This is an image of a lunar eclipse as viewed by NASA's Solar Dynamics Observatory, or SDO, with a model of the moon from NASA's Lunar Reconnaissance Orbiter replacing the lunar shadow. Roll your mouse over the image to see it the original SDO image with the lunar shadow. Credit: NASA/SDO/LRO/GSFC

An image of the moon from the Lunar Reconnaissance Orbiter is overlaid onto an image of the sun from the Solar Dynamics Observatory, from Oct. 7, 2010. The various features of the moon’s horizon are labeled.

To start the process, the visualizers took the viewing position and time from the SDO image. This information was dropped into an LRO model that can produce the exact view of the moon from anywhere, at any time, by incorporating 6 billion individual measurements of the moon’s surface height from LRO’s Lunar Orbiter Laser Altimeter instrument. The model had to take many factors into consideration, including not only SDO’s distance and viewing angle, but also the moon’s rotation and constant motion. Wright used animation software to wrap the elevation and appearance map around a sphere to simulate the moon.

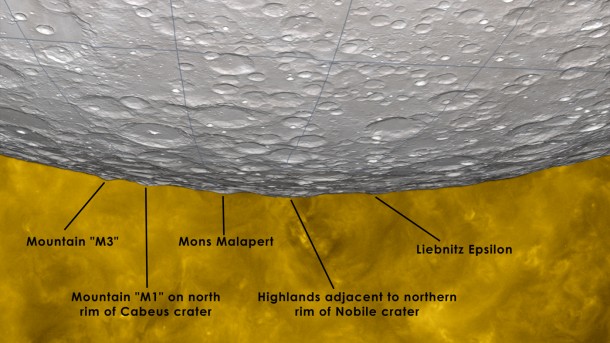

This is an up close shot of two NASA images: An image rendered from a model of the moon from the Lunar Reconnaissance Orbiter overlaid onto an image of the sun from the Solar Dynamics Observatory, during a lunar transit as seen by SDO on Oct. 7, 2010. The various features of the moon’s horizon are labeled. Credit: NASA/SDO/LRO/GSFC

This is an up close shot of two NASA images: An image rendered from a model of the moon from the Lunar Reconnaissance Orbiter overlaid onto an image of the sun from the Solar Dynamics Observatory, during a lunar transit as seen by SDO on Oct. 7, 2010. The various features of the moon’s horizon are labeled. Credit: NASA/SDO/LRO/GSFC

The two images were put together and the overlay was exact. The mountains and valleys on the horizon of the LRO picture fit right into the shadows seen by SDO.

In its own way, this served as a kind of calibration of data. It means that the SDO data on its position and time is highly accurate and that the LRO models, too, are able to accurately provide images of what’s happening at any given moment in time.

And of course, the whole exercise provides for a beautiful picture.

The image is a view of the sun captured by NASA’s Solar Dynamics Observatory on Oct. 7, 2010, while partially obscured by the moon. Looking closely at the crisp horizon of the moon against the sun shows the outline of lunar mountains. Credit: NASA/SDO/LRO/GSFC

The image is a view of the sun captured by NASA’s Solar Dynamics Observatory on Oct. 7, 2010, while partially obscured by the moon. Looking closely at the crisp horizon of the moon against the sun shows the outline of lunar mountains. Credit: NASA/SDO/LRO/GSFC

A model of the moon from NASA’s Lunar Reconnaissance Orbiter has been inserted into a picture, showing how perfectly the moon's true topography fits into the shadow observed by SDO. Credit: NASA/SDO/LRO/GSFC

A model of the moon from NASA’s Lunar Reconnaissance Orbiter has been inserted into a picture, showing how perfectly the moon's true topography fits into the shadow observed by SDO. Credit: NASA/SDO/LRO/GSFC
