NASA Ames Helps Re-enter the Dragon

Published by Klaus Schmidt on Sat May 19, 2012 8:34 am via: NASA
Share
More share options
Tools
Tags

Decades of rigorous research, testing and development performed in the Entry Systems and Technology Division at NASA’s Ames Research Center, Moffett Field, Calif., has garnered Ames’ thermal protection engineers the respect of not just other government agencies, but also commercial entities.

“For four decades, whenever the U.S. government or aerospace industry needed thermal protection capabilities for space flight missions, Ames delivered the technology developments that enabled those missions to go forward,” said Chuck Smith, chief of the Entry Systems and Technology Division at Ames. “Our work plays a key role in both government and industry space flight endeavors.”

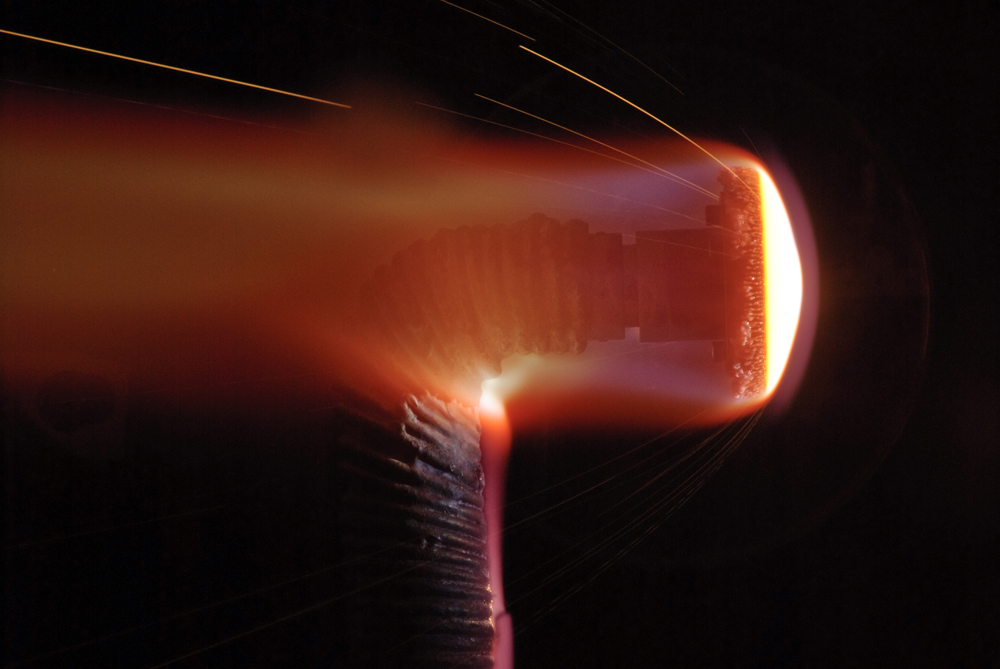

PICA-X during a test in the Arc Jet facility at NASA Ames Photo credit: NASA/Ames

PICA-X during a test in the Arc Jet facility at NASA Ames Photo credit: NASA/Ames

The successful re-entry in late May or early June of the cutting-edge Dragon spacecraft from its demonstration flight to the International Space Station will be enabled in part by thermal protection system (TPS) technologies developed, tested and flight-qualified at Ames. Developed by Space Exploration Technologies Corp.’s (SpaceX), Hawthorne, Calif., the capsule launched into space on May 19, 2012, atop a Falcon 9 rocket also built by SpaceX, from Space Launch Complex 40 at Cape Canaveral Air Force Station in Florida.

SpaceX now has three successful Falcon 9 launches to its credit, along with a history making demonstration of the Dragon capsule that became the first privately built and operated spacecraft to be launched to and recovered from Earth orbit.

“We wouldn’t be here without the help of NASA – the core technologies developed by NASA have made this day possible,” said Elon Musk after the successful demonstration flight of the Falcon 9 launch vehicle and re-entry splashdown of the Dragon capsule in December 2010. “The performance of the heat shield was spectacular. In an exercise of caution, we designed the heat shield to not just handle Earth orbit re-entry, but to actually be able to handle a worst-case, off-nominal lunar and Mars re-entry, so it’s an extremely capable heat shield and opens up a lot of possibilities.”

After passing a few days’ worth of equipment checks and demonstration in orbit, the Dragon spacecraft will approach the station close enough for astronauts to grab it with the station’s large robotic arm. The arm will berth the capsule to the station for astronauts to unload the spacecraft and put about 1,400 pounds of material inside the Dragon for return to Earth.

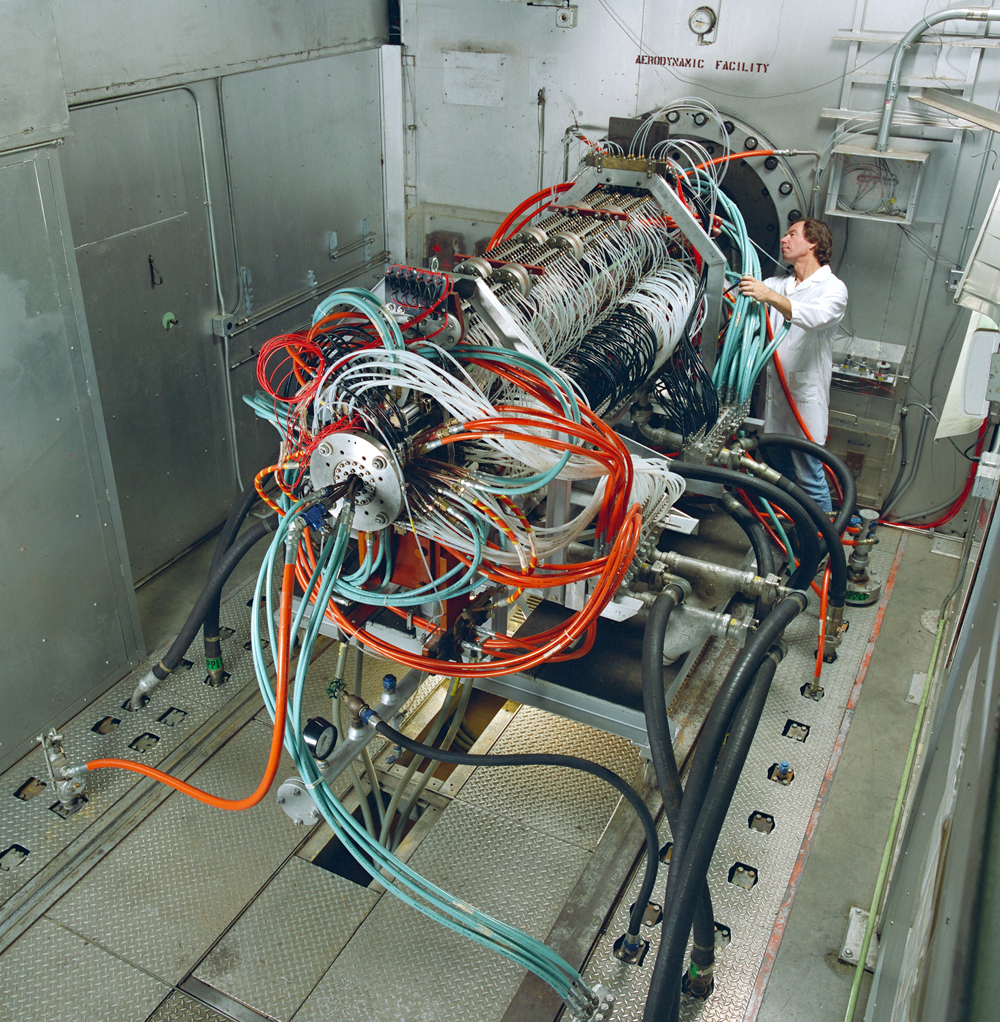

Aerodynamic Heating Facility at Ames where PICA-X was tested Photo credit: NASA/Ames

Aerodynamic Heating Facility at Ames where PICA-X was tested Photo credit: NASA/Ames

The spacecraft does not have a crew, but carries about 1,200 pounds of cargo that the astronauts and cosmonauts living on the station will be able to use. Because the mission is a test flight, the cargo is not material deemed critical to the crew.

Unlike any other cargo carrier, the Dragon is designed to bring things back to Earth, a boon for scientists whose research is taking place on the orbiting laboratory. In order to safely return the Dragon to Earth, SpaceX chose to incorporate the Ames-developed Phenolic Impregnated Carbon Ablator (PICA) thermal protection material into their heat shield design for the Dragon capsule. PICA is a heat shield material slightly more dense than balsa wood that is designed to protect spacecraft during their fiery re-entry into Earth’s atmosphere. For example, NASA applied PICA on the Stardust sample return capsule, which brought back to Earth the first comet particles and interstellar dust samples in January 2006. Stardust holds the record for the fastest Earth re-entry speed of any human-made object.

To apply this innovative heat shield technology, SpaceX engineers worked with Dan Rasky – an original developer of the material, senior scientist and director of the Emerging Commercial Space Office at Ames – along with other thermal protection materials researchers and scientists at Ames.

“When people get serious about entry systems design, they come to Ames for the capabilities, experience and unique facilities needed to do that work,” said Rasky. “They understand the future of heat shields is taking place in the here-and-now.”

This forged a public-private partnership NASA envisioned as a key component to achieve the agency’s mission to closely collaborate with Commercial Orbital Transportation Services (COTS) partners. A team at Ames performed the initial design analysis for the Dragon thermal protection system using Ames-developed tools, including the Arc Jet Complex that is used to simulate the in-flight hot gas flow environments the spacecraft experiences during re-entry.

The PICA-based version of the heat shield material developed by SpaceX, is called PICA-X. PICA-X protects the spacecraft’s structure during the intense heating environment experienced during re-entry. These samples were tested in the arc jets at Ames in order to understand the material’s response to re-entry conditions. Engineers at Ames conducted two series of thermal protection system material testing for PICA-X in December 2008 and June 2011. During the tests, the surface temperature on the PICA-X samples reached approximately 3,450 degrees Fahrenheit – almost twice as hot as lava.

The PICA-X system is passive, meaning it’s not load bearing, and it protects the vehicle by absorbing heat and re-radiating it out into space, helping the spacecraft maintain its shape and structural integrity. On the other hand, active systems keep heat away from the vehicle’s structure by partially burning or charring it, which changes the vehicle’s shape in the process.

“We have an outstanding team who were thrilled to have the opportunity to work with industry, because it helps us expand our portfolio of capabilities, while gaining new insights into emerging technology challenges,” said Mary Livingston, chief of the Systems Analysis Branch in the Flight Vehicle Research and Technology Division at Ames. “Eventually we transferred some of those capabilities to SpaceX so they could perform subsequent design iterations.”

Enabling the Future

The Dragon is expected to become operational and launch regular supply runs to the space station. To further take advantage of private-public partnership opportunities like the one between NASA and SpaceX, Rasky believes it is vital for NASA to return to the model established by the National Advisory Committee for Aeronautics (NACA), created by Congress in 1915 to support the fledgling aviation industry. In 1958, when the nation’s focus turned towards space, NACA was renamed the National Aeronautics and Space Administration (NASA).

“By providing the kind of support for the emerging commercial space industry that NACA provided for the aviation industry, both NASA and industry will benefit,” observed Rasky. “Our commercial partners will gain access to the deep knowledge and unique testing facilities developed at NASA over the last 50 years, and NASA can gain insight into the flexible work processes used by entrepreneurial firms to better support the innovative work going on inside the agency.”

As for other ongoing NASA space endeavors, heat shield researchers at Ames continue to pioneer the development of technologies to enable future missions. In August 2012, PICA will help NASA’s Mars Science Laboratory mission and Curiosity rover land safely on Mars.

“As we did with PICA, today we are engaged in developing innovative new thermal protection systems to enable future space missions by making our public and private partners’ human and robotic missions more robust, safer and a lot cheaper,” said Ethiraj Venkatapathy, chief technologist for the Entry Systems and Technology Division at Ames.

9 Comments
box
Are there any systems that try actively cooling the heatshield and then using some other means to dump the heat, like extra surface area to radiate it in other directions than towards the shockwave or something like that, to reduce the temperature of the heatshield even further?

Is this possible?

And would it be beneficial at all?

Like if you collected the energy and then used lasers to dump it, or used the energy to heat an onboard heatsink?

Would that be possible to use for returning heavy cargo to Earth?

Like if we had 10 or 100 tons of metals to return, could we use that as a heatsink for reentry, and reduce the thermal stress on the shield?
uhm, why would you ever want to return tens of tons of metal from orbit? That doesn't make sense! Leave it up there to build something new with it.
box
Good point. :)

What if we had surplus metal in orbit, and we stopped metal extraction from the crust for environmental reasons.

Would that be a good reason?

Also what if we had unused or unnecessary mass in orbit, we could make use of it with dumping it down here. :)

Also what if we had large amount of material coming our way, and we wanted to aerobrake it to put it in LEO.

Then we could use an active heat shield to reduce it's temperature, and avoid it evaporating or exploding high up in the atmosphere.

Any of those sound good enough reason to have a technology like that?

My question is, if it actually makes sense physically or if it is not feasable?
box
I hope i didn't sound offending, my social interaction software isn't the best, i don't know when i come off insulting or impolite.
Well if you really have a reason for active heat shields, there are imho two interesting options:

the "simple" one: Something that is proposed for SKYLON. Take a little bit of plain old water with you and let that evaporate away to reduce temperature.

The complex but very interesting one: magneto-hydrodynamic braking.
The energy involved with aerobraking/re-entry inonizes the atmosphere, a plasma is created. plasma is an electric conductor (just think of lightning in a thunderstorm) so you can use a magnetic field to deflect it away from your vehicle. The "problem": it is an active system, and a complex one as well. You really, really want your tech at a level where you have enough confidence to have your live depend on it. ;)

I guess you will find Jonathan Goffs series on MHD Aerobraking interesting: http://selenianboondocks.com/category/mhd-aerobraking-and-tps/
box
Would that increase reusability and turnaround time for a craft?
box
I mean decrease turnaround time. :D
haha, they put that article up before the COTS2+ flight had a launch abort :D
box
:) Just about to watch what they say at the de-brief, i was watching and was a bit disappointed, but i am happy i didn't see a massive explosion instead of a proper launch. :D
