While engineers press on at full speed with building the James Webb Space Telescope, a test model of one of the telescope’s major scientific instruments has gone on display today at its manufacturer’s in Germany, ready for shipping to NASA later this year.

The James Webb Space Telescope in orbit. Credits: Northrop Grumman

The James Webb Space Telescope in orbit. Credits: Northrop Grumman

The James Webb Space Telescope (JWST), the Hubble Space Telescope’s successor, is a powerful optical and near-infrared observatory due for launch in 2014. ESA, a key partner in this cutting-edge mission, has responsibility for two of the four instruments and will provide the Ariane 5 for launch.

The James Webb Space Telescope stowed inside the Ariane 5.  Credits: Arianespace-ESA-NASA

The James Webb Space Telescope stowed inside the Ariane 5. Credits: ESA

The Engineering Test Unit (ETU), now being displayed at the facilities of Astrium in Ottobrunn, Germany, is a test model of ESA’s Near-Infrared Spectrograph (NIRSpec) for JWST. The instrument will be sensitive to wavelengths from the most distant galaxies and will be capable of analysing the chemical composition of more than 100 objects simultaneously.

NIRSpec development model. Credits: Astrium

NIRSpec development model. Credits: Astrium

Along with the other instruments, NIRSpec will be fitted into the Integrated Science Instrument Module (ISIM). To save time, engineers will use the ETU for pre-integration tests with the ISIM before the actual instrument is delivered. The structure of the ISIM was delivered to NASA on 15 September for integration tests.

Three of the 17 mirror segments that form JWST’s primary mirror being prepared to be loaded into a test chamber at NASA's Marshall Space Flight Center, USA, for cryogenic tests.  Credits: NASA/MSFC

Three of the 17 mirror segments that form JWST’s primary mirror being prepared to be loaded into a test chamber at NASA's Marshall Space Flight Center, USA, for cryogenic tests. Credits: NASA/MSFC

The completed JWST will be about 21 m in width and about three stories high. The main telescope mirror will measure 6.5 m in diameter — too large to launch in one piece. It will consist of 17 individual mirror segments mounted on a frame which will be folded inside the fairing of the Ariane 5 at launch. These mirror segments are being tested in cryogenic chambers to ensure they can withstand the extreme temperatures of space.

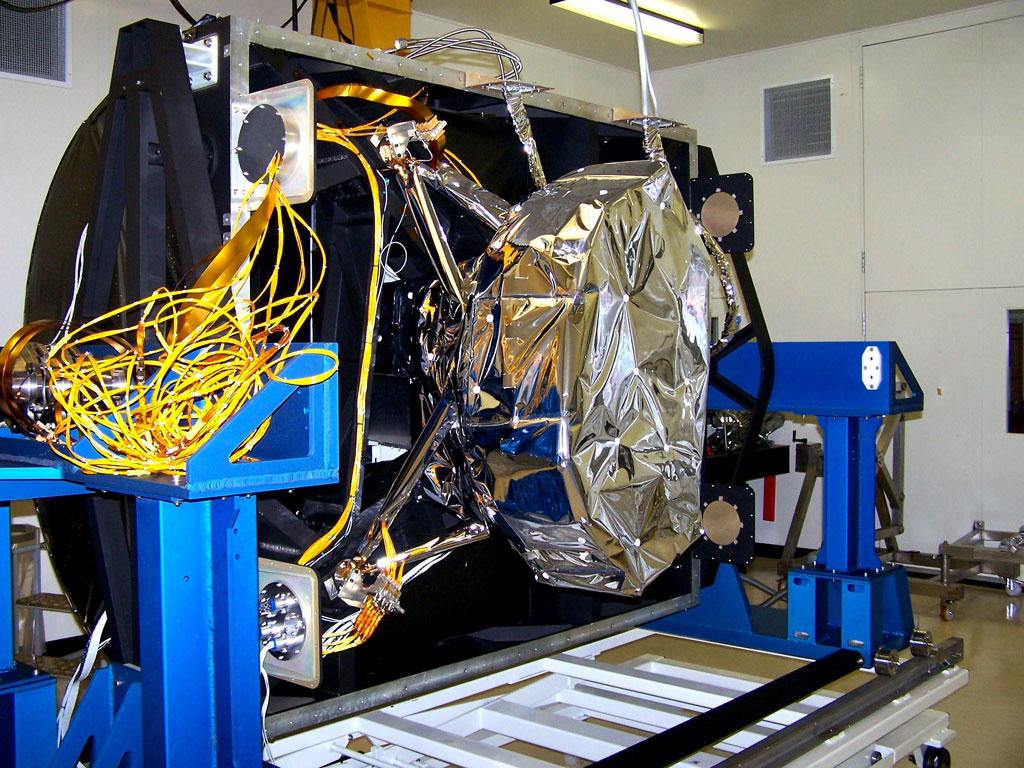

The Mid-InfraRed Instrument (MIRI) verification model, fully assembled and ready for cryogenic performance tests at the Rutherford Appleton Laboratory in the UK.  Credit: MIRI European Consortium/RAL

The Mid-InfraRed Instrument (MIRI) verification model, fully assembled and ready for cryogenic performance tests at the Rutherford Appleton Laboratory in the UK. Credit: MIRI European Consortium/RAL

At launch, the sunshield will also be folded, much like a cocoon, around the front and back of the telescope.

The NIRSpec ETU will be delivered to NASA’s Goddard Space Flight Center later this year along with a test model of the other European instrument, the Mid-Infrared Instrument (MIRI).
