Headlines > News > LRO Diviner Observes LCROSS Impact

LRO Diviner Observes LCROSS Impact

Published by Matt on Mon Oct 12, 2009 12:39 pm via: source
Share
More share options
Tools
Tags

The LRO Diviner instrument obtained infrared observations of the LCROSS impact. LRO flew by the LCROSS Centaur impact site 90 seconds after impact at a distance of ~80 km.

Diviner was commanded to observe the impact site on eight successive orbits, and obtained a series of thermal maps before and after the impact at approximately two hour intervals at an angle of approximately 48 degrees off nadir. In this viewing geometry, the spatial footprint of each Diviner detector was roughly 300 by 700 meters. Figure 1. Diviner thermal map of the LCROSS impact sites.

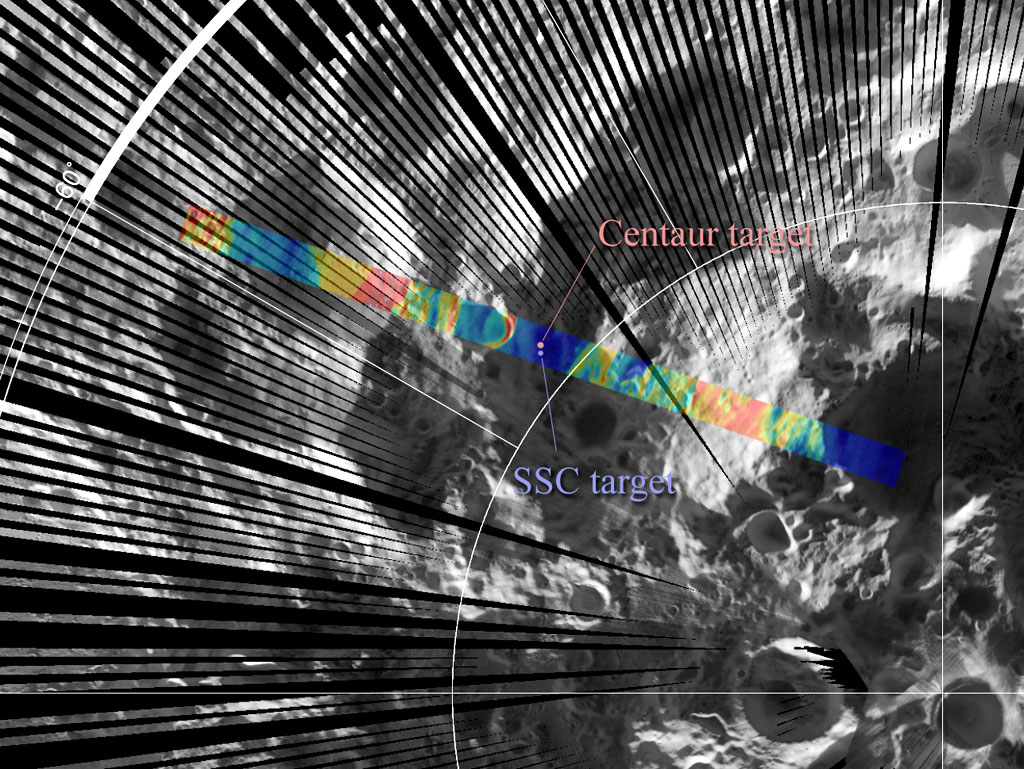

Diviner thermal map of the LCROSS impact sites Credit: NASA/GSFC/UCLA

Diviner thermal map of the LCROSS impact sites Credit: NASA/GSFC/UCLA

The picture above shows the locations of the Diviner LCROSS impact swaths overlain on a grayscale daytime thermal map of the Moon’s south polar region. Diviner data were used to help select the final LCROSS impact site inside Cabeus Crater, which sampled an extremely cold region in permanent shadow that can serve as an effective cold trap for water ice and other frozen volatiles. Figure 2 shows preliminary, uncalibrated Diviner thermal maps of the impact site acquired two hours before the impact, and 90 seconds after the impact.

The thermal signature of the impact was clearly detected in all four Diviner thermal mapping channels. Since the LCROSS impact feature is predicted to be significantly smaller than a Diviner footprint, its detection is consistent with the notion that the LCROSS impact resulted in significant local heating of the lunar surface.

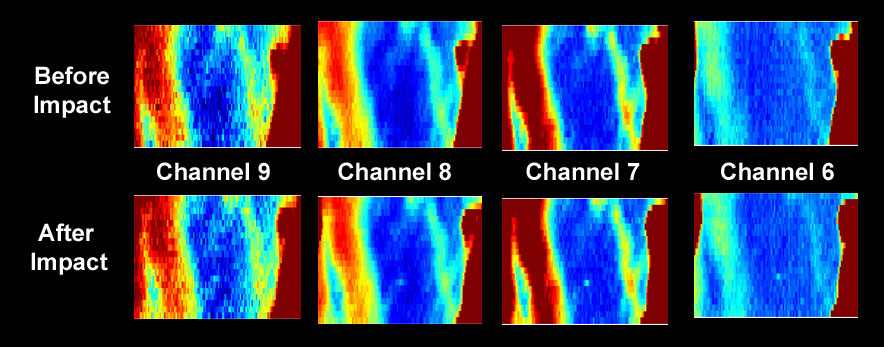

Uncalibrated Diviner thermal maps of the LCROSS impact region acquired before and after the LCROSS Centaur impact. Credit: NASA/GSFC/UCLA

Uncalibrated Diviner thermal maps of the LCROSS impact region acquired before and after the LCROSS Centaur impact. Credit: NASA/GSFC/UCLA
