LCROSS (and the Moon) Up Close

Published by Matt on Fri Oct 9, 2009 8:45 am via: source
Share
More share options
Tools
Tags

Written by Nancy Atkinson

The LCROSS spacecraft will be giving it all up for science this morning when it and the second stage of the Centaur rocket impact Cabeus crater on the Moon’s south pole, searching for possible water ice hidden inside the perpetually dark portions of the crater.

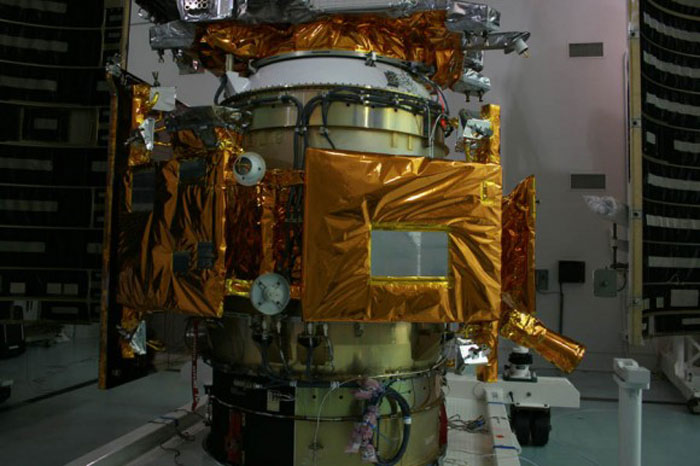

LCROSS Close Up  Side view of LCROSS wrapped in gold colored multi layer thermal insulation. Note solar array at left. Science instrument, avionics, navigation, communication and thruster equipment panels encircle and are attached to the central payload adapter ring. Star tracker at right. Payload fairing halves sit at either side. Credit: Ken Kremer and the Planetary Society.  Used by permission.

LCROSS Close Up Side view of LCROSS wrapped in gold colored multi layer thermal insulation. Note solar array at left. Science instrument, avionics, navigation, communication and thruster equipment panels encircle and are attached to the central payload adapter ring. Star tracker at right. Payload fairing halves sit at either side. Credit: Ken Kremer and the Planetary Society. Used by permission.

Since we’ll never see LCROSS again, its only fitting to take a good long, last look at her. Solar System Ambassador and Planetary Society volunteer Ken Kremer had the wonderful opportunity to see both LCROSS and her sister ship the Lunar Reconnaissance Orbiter (LRO) in the Astrotech Space Operations Facility clean room in Titusville, FL earlier this year before the dynamic duo launched together on June 18. Ken has graciously given permission to allow us to publish these images (which were previously posted on the Planetary Society website) so we can all remember what she looked like. Above is a side view of LCROSS wrapped in gold multi-layer thermal insulation. The solar array is on the left side. Science instrument, avionics, navigation, communication and thruster equipment panels encircle and are attached to the central payload adapter ring. The star tracker is on the right side, and the payload fairing halves sit at either side.

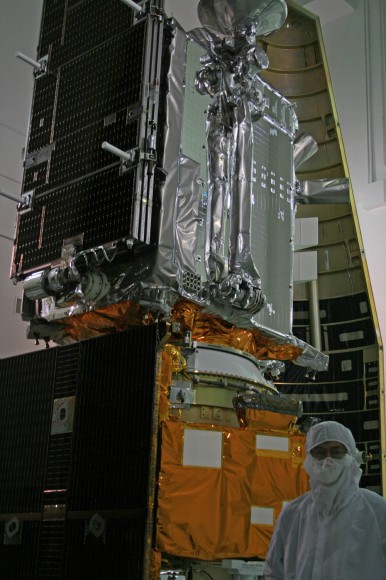

LRO, LCROSS and Ken Kremer. Credit: Ken Kremer and the Planetary Society.

LRO, LCROSS and Ken Kremer. Credit: Ken Kremer and the Planetary Society.

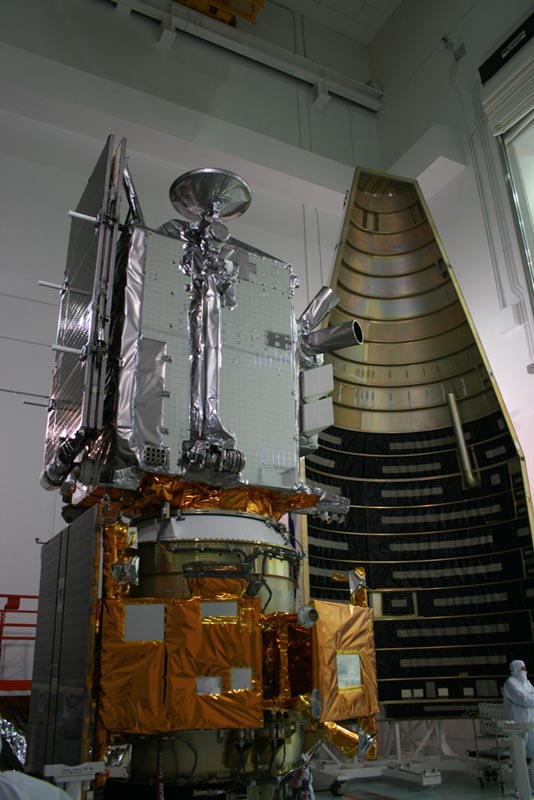

LRO (gray) and LCROSS (yellow) lunar spacecraft stacked adjacent to Atlas V payload fairing at Astrotech Payload Facility on May 15, 2009. Credit: Ken Kremer and the Planetary Society.

LRO (gray) and LCROSS (yellow) lunar spacecraft stacked adjacent to Atlas V payload fairing at Astrotech Payload Facility on May 15, 2009. Credit: Ken Kremer and the Planetary Society.

This image really provides a reference to how big these two spacecraft actually are. Note the person in the bunny (clean) suit standing next to LRO (gray) and LCROSS (yellow) lunar spacecraft stacked adjacent to Atlas V payload fairing.

And since we’ve now seen LCROSS up close, here’s a few new close-up images just released by NASA of Cabeus crater.

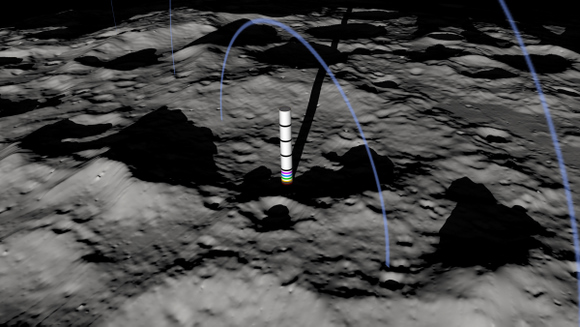

A birds-eye view of Cabeus crater, LCROSS' target.  Credit: NASA/Goddard Space Flight Center Scientific Visualization Studio

A birds-eye view of Cabeus crater, LCROSS' target. Credit: NASA/Goddard Space Flight Center Scientific Visualization Studio

This visualization image gives a bird’s-eye view of Cabeus crater and the target zone for the crash site. A 3.5-kilometer-wide “flagpole” marks the targeted location within the crater. Colored stripes on the pole indicate one kilometer steps in elevation above the crater floor, black stripes indicate 5 kilometer steps. The pole stands 25 kilometers tall, and the blue rings mark heights of 50 and 100 kilometers above the impact site.

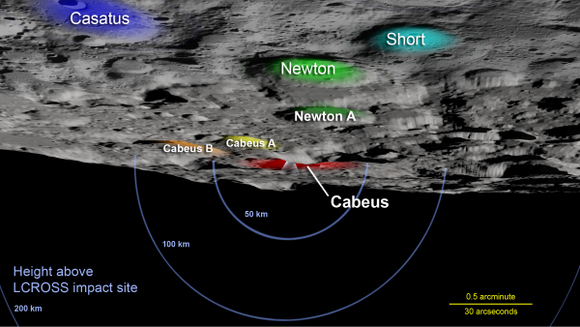

Key landmarks to locate Cabeus Crater. Credit: NASA/Goddard Space Flight Center Scientific Visualization Studio

Key landmarks to locate Cabeus Crater. Credit: NASA/Goddard Space Flight Center Scientific Visualization Studio

This image shows key lunar landmarks used to locate Cabeus crater. The yellow scale shows angular distances in the plane of the impact site; blue arcs show heights 50, 100 and 200 kilometers above it.

Hopefully the telescopes trained on this region of the Moon will give us the real images of this event!
